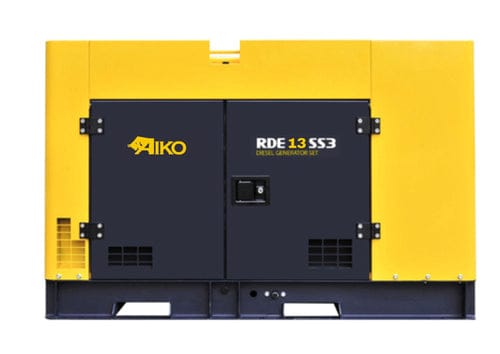

Aiko 8.5kW Super Silent Diesel Generator 230V/400V 50Hz | Model : RDE13SS3
$0.00
Aiko 8.5kW Super Silent Diesel Generator 230V/400V 50Hz | Model : RDE13SS3
Description :
Robust and durable
Compact, robust and flexible structures ensure long service life and quiet operation.
Thicker painting treatments stand the wear and tear in extreme environmental conditions.
Cleaner, safer and quieter
Waterproof canopy ensures protection against ingress of dust and water.
All DEHRAY generators meet or exceed relevant standards for noise and emission regulations.
Design for easy transportation
Lifting hook and forklift access are standard on all units. Compact structure minimize transportation costs.
Easy to use
Control panel is simple and easy to operate.
Built-in monitoring system ensures safe operation and basic parameter display
Specification :
RDE13SS3
Rated frequency
HZ
50
60
Prime power
KVA
10.6
13.1
KW
8.5
10.5
Standby power
KVA
11.6
14.5
KW
9.3
11.6
Rated voltage
V
400/230
416/240
Rated current
A
15.3
18.2
Rated rotation speed
r/min
1500
1800
Generator type
FD1C1-4 (Three-phase)
Pole No.
4
Phase number
Three-phase
Excitation mode
Brushless, self-excitation and constant voltage(with AVR)
Power factor
COSΦ
0.8(lag)
Insulation grade
H
Engine type
RD385D
Stucture type
3-cylinder, in-lined, 4-stroke, direct-injected, water-cooled
Bore×stroke
mm
85×90
Displacement
L
1.532
Compression ratio
18∶1
Rated power
KW
11
13
Lubrication system
Pressure splashed
Lube oil brand
Above CD grade or SAE 10W-30, 15W-40
Starter system
12V Electric starter
Starter motor capacity
V-KW
12V 3KW
Battery capacity
V-Ah
12V 65Ah
Engine fuel consumption
g/KW.h
255
Fuel type
0#(summer)-10#(winter)-35#(chillness) diesel
Control panel type
Smartgen digital panel
Output
Receptacle
2-single phase
Connection pole
with
Fuel tank capacity
L
68
Overall dimension
mm
1600×780×1050
