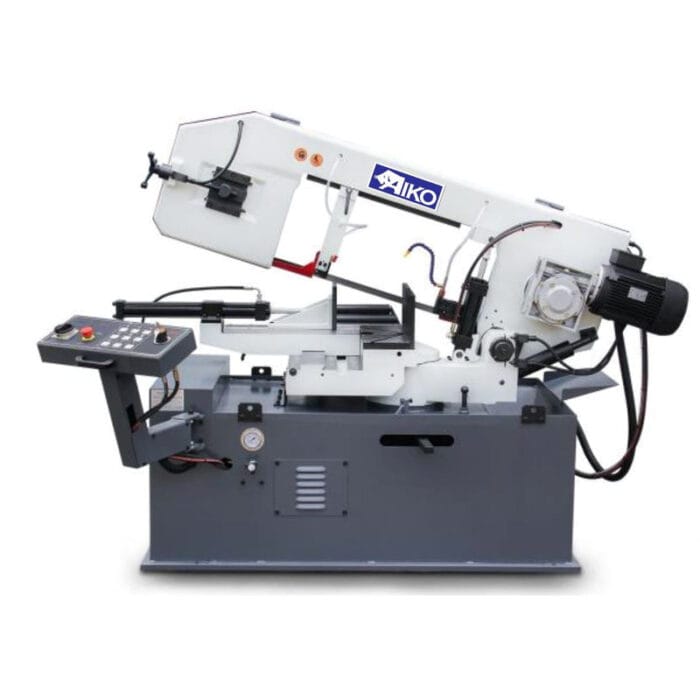

Aiko BS-460G Metal Horizontal Bandsaw Machine 18″ | Model : BSM-BS460G

Aiko BS-460G Metal Horizontal Bandsaw Machine 18″ | Model : BSM-BS460G
Features :

Max. cutting 330mm at 90°
Hydraulic clamping vice to fix the material well
Saw frame swivel on both side to get angle cutting
Quick lock of the saw frame swivel
Hydraulic descent of the saw frame
Gear drive, double speed motor

Specification :

Model
BS-460G

Cut Circular @90°
330mm(13″)

Cut Rectangular @90°
460x250mm (18″x9.8″)

Cut Circular @60°
205mm (8″)

Cut Rectangular @60°
205x250mm (8″x9.8″)

Cut Circular @45° (left and right)
305mm (12″)

Cut Rectangular @45° (left and right
305x250mm (12″x9.8″)

Blade speed @50Hz
40/80 MPM

Blade Speed @60HZ
48/96 MPM

Blade size
27X0.9X3960mm

Motor power
1.5/2.2 kW

Drive
Gear

Packing size
230x105x163 cm

N.W./G.W.
900/1060 kg

*specification and colour of product are subject to change without prior notice
