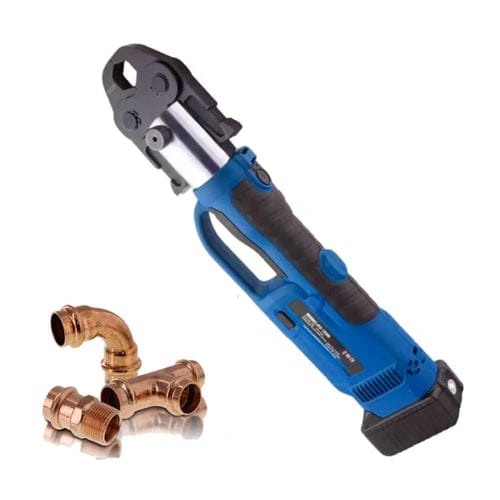

Aiko PZ1550 18V Battery 54mm Stainless Steel Cordless Hydraulic Pipe Crimping Tool (Clamper) | M type Jaw : 15 – 54mm | Model : PZ-1550+JAW

Aiko PZ1550 18V Battery 54mm Stainless Steel Cordless Hydraulic Pipe Crimping Tool (Clamper) | M type Jaw : 15 – 54mm | Model : PZ-1550+JAW
Features :

Safety : Micro computer controlled system whereby the piston retracts automatically when it reaches the preset valve

Efficient : Enhanced performance motor with high speed hydraulic system results in the pressing process to be less than 4 seconds

Reliable : The PZ 1550 is able to make up to 30,000 pressings

Portable : Torch-light design (Straight Shank) makes it easy to carry around

NOTE : Working in varied working temperatures, pressing cycles may change according to different types of pipes

Specifications :

Rated Clamping Force : 32 kN
Applications :

Thin-wall Stainless Steel pipes
Copper Pipes of 12 – 54 mm

Rated Working Pressure : 52 Mpa
Number of Crimps per charge : 350 times ( DN 20 stainless steel pipes)
Piston Stroke : 40 mm
Crimping Cycle : 3 – 8 s
Dimensions (L x W x H) : 450 x 81 x 128 mm (without jaw)
Working temperature : – 10 Degree Celsius to 40 Degree Celsius
Battery type : 18V 3.0Ah Li-ion battery

Standard Accessories :

Crimping Tool – 1 unit
18V battery  – 2 pcs
Charger – 1 unit
Crimping Dies : 15mm, 22mm , 28mm , 35mm , 42mm , 54mm Jaws
