Description
Datasheet: Download
Backorder Leadtime: 6 To 8 Weeks

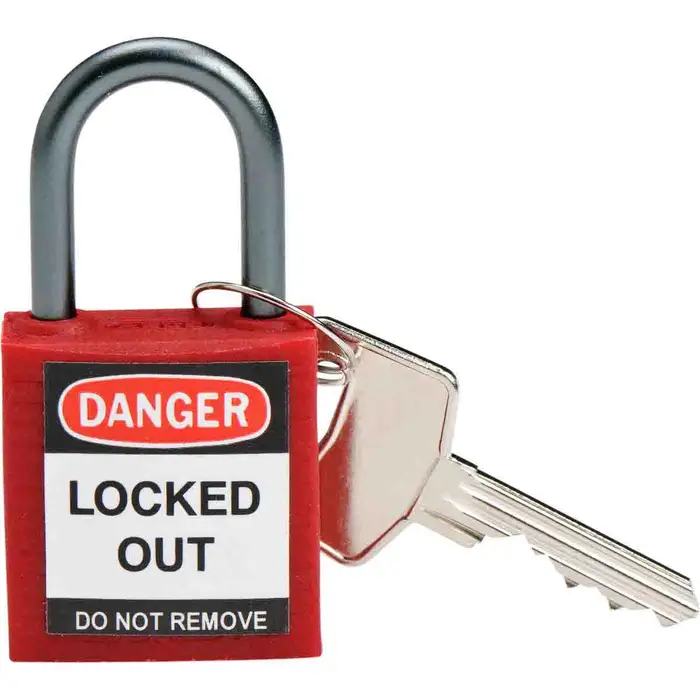

Nylon Padlocks from Brady® have nonconductive fiberglass-reinforced nylon bodies and unique key cylinders that prevent electricity from traveling from the shackle to the key. Extremely compact and lightweight – compact nylon padlocks from Brady® are the smallest nylon locks on the market These lightweight padlocks comply with all OSHA requirements and offer superior temperature, chemical and corrosion resistance Non-conductive nylon padlocks are a safer alternative to metal locks for lockout applications Reserved, paracentric keyway provides optimal security and the special design prevents the key from being released until the padlock shackle is closed
| PRODUCT FEATURES | |
| Shackle Vertical Clearance | 1 in |
| Application | Lockout Tagout |
| Key Option | Keyed Different |
| Key Mechanism | Standard Pin Tumbler |
| Maximum Number Of Different Keycodes | 15000 |
| Key-Retaining | Yes |
| Number Of Pin Tumblers | 5 |
| PREPRINTED INFORMATION | |
| Text Legend | LOCKED OUT DO NOT REMOVE |
| Header | DANGER |
| Reverse Legend | PROPERTY OF, PROPRIETE DE, PROPIEDAD DE |
| Text Language | English, French, Spanish |
| Language | English, French, Spanish |
| COMPLIANCE | |
| UNSPSC | 46171501 |
| RoHS Compliance Status | Not applicable to this product |
| California Prop 65 | \u003cimg src=\ |

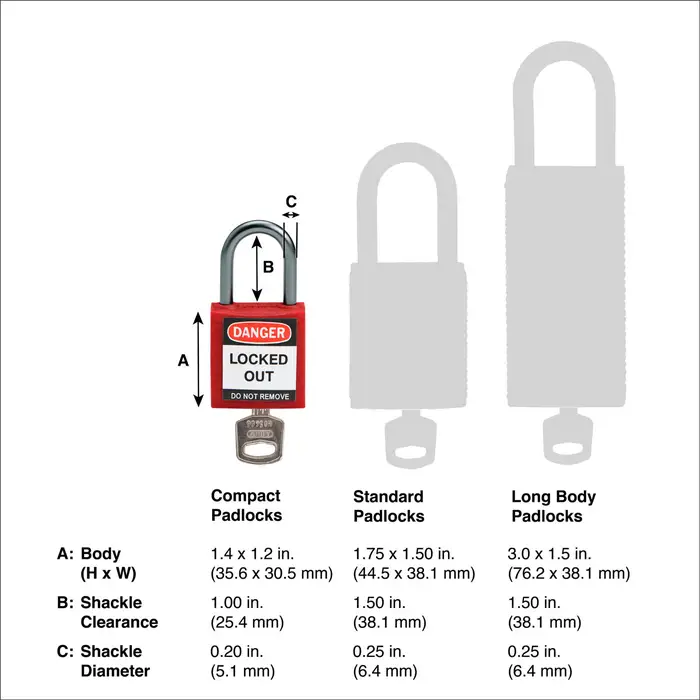

| DIMENSIONS | |
| Padlock Body Type | Compact |
| Body Size | 1.4 in H x 1.2 in W x 0.625 in D |
| Depth | 0.625 in |
| Shackle Diameter | 0.2 in |
| KEY CHARACTERISTICS | |
| Applications | Confined Spaces, Electrical |
| ECCN (Export Commodity Control Number) | EAR99 |
| HTS Code (Harmonized Tariff Schedule) | 8301.10.6080 |
| Brand Name | Brady® |
| Country Of Origin | China |
| Catalog Page # | \u003ca class=\ |
| UOM | Each |
| Product Number | 143150 |
| UPC | 7.54473E+11 |
| WHAT\U0027S INCLUDED | |
| Number Of Keys Included | 1 |
| Number Of Labels Included | 3 |
| Includes | (1) English Label, (1) French Label, (1) Key, (1) Padlock, (1) Spanish Label |
| MATERIAL CHARACTERISTICS | |
| Minimum Service Temperature °F | 0 °F |
| Conductivity | No |
| Service Temperature Range °F | 0 °F – 250 °F |
| Body Material | Nylon |
| Color | Red |
| Material | Rugged reinforced nylon body with Aluminum shackle |
| Padlock Body Material | Nylon |
| Indoor Or Outdoor Use | Indoor/Outdoor Use |
| Material Properties | Anti-spark, Lightweight, Non-conductive |
| Shackle Material | Aluminum |
| Material Number | LOTO-9 |
| Maximum Service Temperature °F | 250 °F |
| Minimum Service Temperature °F | 0 °F |
| Shackle Coating/Finish | Chrome-plated |
| COMPATIBILITY | |
| For Use With | Equipment Lockout |
