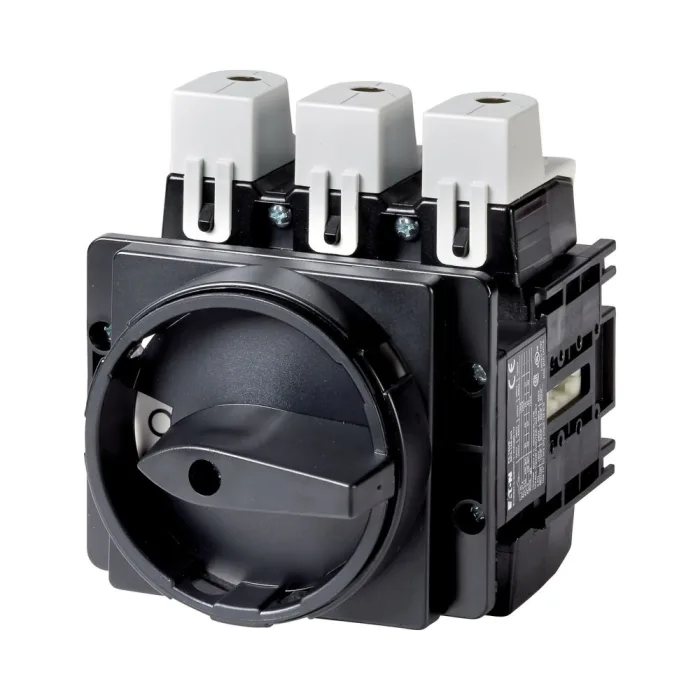

The Eaton Fuse Disconnector is a high-quality switchgear device designed for safe circuit isolation and protection. It supports reliable electrical control in industrial and commercial power distribution systems. Therefore, it is widely used in panel boards, distribution cabinets, and power control applications.
This switch disconnector features a rated permanent current of 160A. It also supports a rated fuse current of 160A, which ensures effective protection against electrical faults. As a result, the device helps protect electrical circuits and connected equipment from damage.
The Eaton Fuse Disconnector comes with a 3-pole configuration. This design allows the device to control three-phase electrical systems efficiently. It supports NH00 fuse size, which is commonly used in industrial electrical protection systems.
The device operates at a rated operational voltage of 500V AC. Therefore, it can handle demanding electrical environments in factories, workshops, and commercial buildings. Additionally, it provides a rated short-time withstand current of 7kA, which helps maintain stability during short circuit conditions.
For higher safety levels, the unit also supports a conditioned rated short-circuit current of 120kA. This feature improves protection during extreme electrical faults. As a result, electrical systems remain safer and more reliable.
The disconnector includes a frame clamp mounting design. This mounting system ensures stable installation within electrical panels. It also allows secure integration into distribution boards and switchgear assemblies.
The device has an IP20 protection rating, which protects internal components from accidental contact with solid objects. Furthermore, the unit is suitable for floor mounting, which makes it practical for industrial panel installations.
The control mechanism uses a cover grip handle, which allows easy manual operation. Additionally, the system supports an optional motor drive, providing automation capability when required.
The switch disconnector is manufactured in compliance with IEC 60947-3 standards, ensuring high safety and performance requirements for electrical switchgear devices.
Key Features
3-pole fuse switch disconnector
160A rated permanent current
NH00 fuse size compatibility
500V AC operational voltage
7kA short-time withstand current
120kA short-circuit capacity
Frame clamp mounting system
IP20 protection rating
IEC 60947-3 compliant
The Eaton Fuse Disconnector provides dependable circuit isolation, strong electrical protection, and long-term performance for industrial power systems.
