Eaton Handle for N (S)1(-4) Series, NZM1(-4) Series, PN1(-4) Series

The NZM Rotary Handle from Eaton is designed for safe and reliable operation of isolator and circuit breaker switches in industrial environments. This handle is compatible with the Eaton NZM Series and works with N(S)1-4, NZM1-4, and PN1-4 series switches.

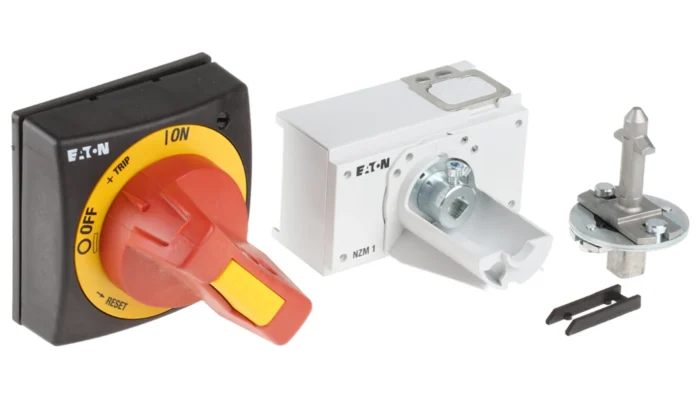

The Eaton NZM1-XTVDVR rotary handle features a front-mounted rotary dial actuator, allowing operators to easily control disconnect switches from the front of a control panel. Because of its ergonomic design, it enables quick circuit isolation for safe maintenance and emergency shutdown procedures.

This handle includes a 190 mm extension rod, making it ideal for operating switches mounted deeper inside electrical enclosures. As a result, it simplifies the operation of large machinery and industrial equipment.

Safety is a key advantage of this device. The handle supports up to three padlocks, which helps prevent accidental or unauthorized switching during maintenance. Additionally, the clearly labelled dial positions provide a visible indication of the switch status.

The handle is built with durable metal and plastic housing, offering strong resistance against impacts and harsh industrial conditions. With an IP66 protection rating, it is protected against dust and high-pressure water jets, making it suitable for demanding environments such as manufacturing plants and electrical switchboards.

The red and yellow emergency-style housing also ensures high visibility, allowing operators to quickly locate the switch in critical situations.

Key Features

• Compatible with N(S)1-4, NZM1-4, and PN1-4 series switches

• Model NZM1-XTVDVR rotary handle

• Front rotary dial actuator

• 190 mm extension rod for deep switch mounting

• IP66 protection rating

• Supports up to three padlocks

• Clear ON/OFF dial position indicators

• Durable metal and plastic housing

Common Applications

• Industrial control panels

• Electrical distribution systems

• Machine safety isolation switches

• Manufacturing and processing plants

• Maintenance lockout systems

Note: Eaton was formerly known as Moeller.
