Eaton Rotary Handle for N (S)1(-4) Series, NZM1(-4) Series, PN1(-4) Series

The NZM Rotary Handle from Eaton is a reliable accessory designed for safe manual operation of industrial circuit breakers. This lockable rotary handle is compatible with N(S)1-4, NZM1-4, and PN1-4 series switches, making it ideal for switchgear and control panel installations.

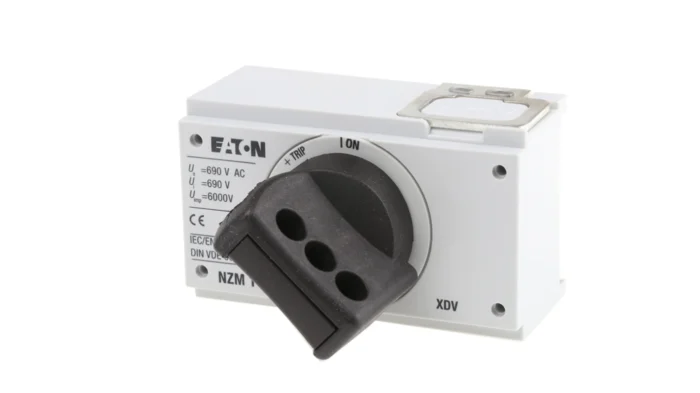

The Eaton NZM1-XDV rotary handle allows operators to control the circuit breaker using a smooth rotational movement mechanism. Because of its ergonomic design, it ensures quick and convenient switching while maintaining high safety standards in industrial electrical systems.

For enhanced safety, the handle can be locked in the OFF (0) position using up to three padlocks. This feature helps prevent accidental or unauthorized switching during maintenance procedures. As a result, it supports proper lockout-tagout safety practices in industrial environments.

The device is designed to meet international standards and is approved by UL/CSA and compliant with IEC standards. It also offers IP20 protection, which helps protect against accidental contact with internal components.

Additionally, the handle is tested for resistance to heat, fire, and UV radiation, ensuring reliable performance even in demanding industrial environments. It can also be combined with an insulating surround to improve safety during operation.

Key Features

• Lockable rotary handle for circuit breakers

• Compatible with N(S)1-4, NZM1-4, and PN1-4 series

• Model NZM1-XDV

• Rotary switch operation mechanism

• Supports up to 3 padlocks for safety locking

• IP20 protection rating

• UL / CSA approved

• IEC compliant

• Resistant to heat, fire, and UV radiation

Common Applications

• Industrial switchgear systems

• Electrical distribution panels

• Machine control panels

• Emergency stop and safety systems

• Maintenance lockout systems

Note: Eaton was previously known as Moeller.
