Idec Safety Enabling Switch, DPDT, IP65

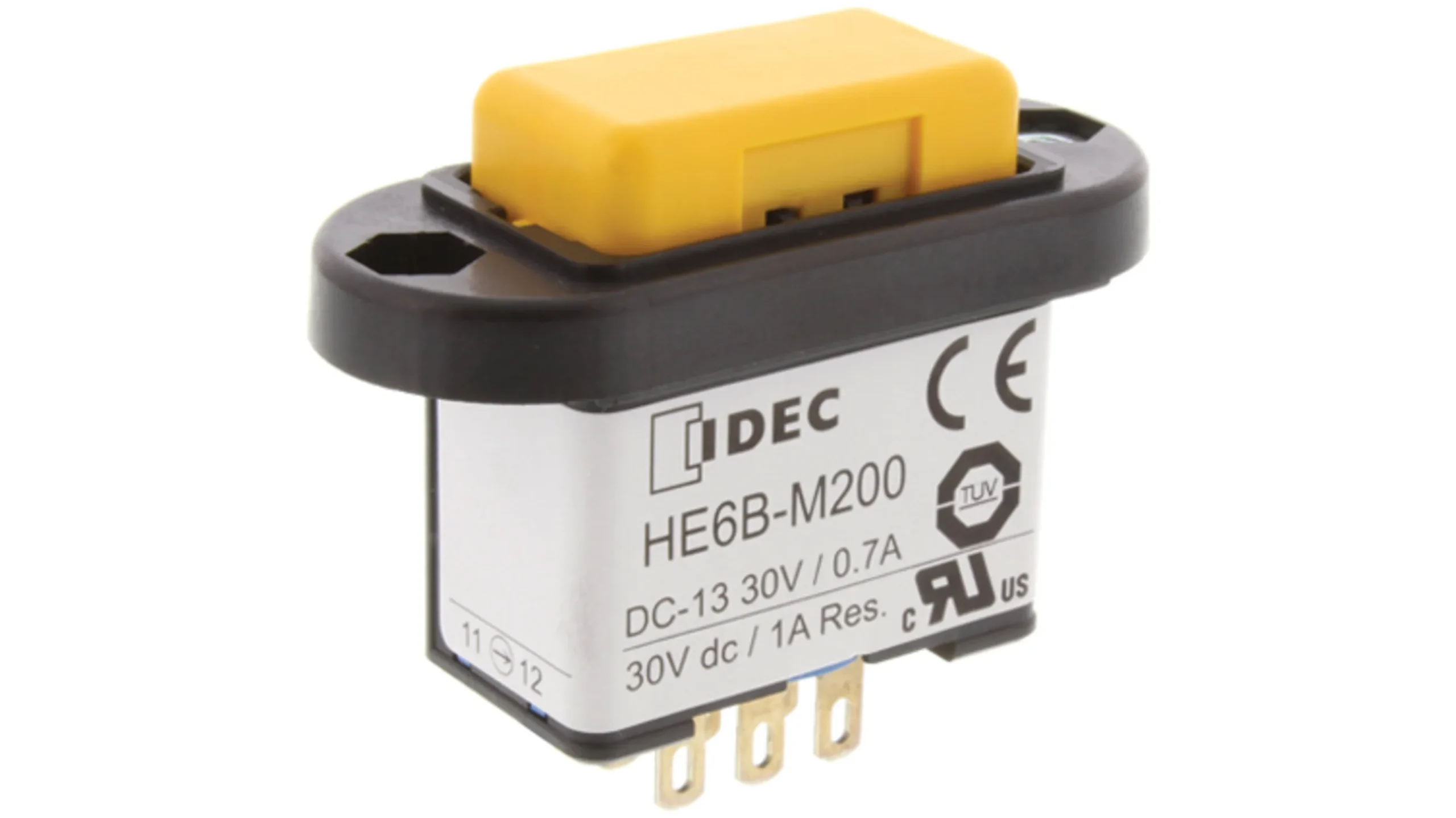

IDEC HE6B Enabling Switch
Ideally suited for use as an enabling switch for manual robotic control, the function accomodates a panic situation wherein the operator can release or squeeze for the switch off position. The contact will not close when released from “Off” position 3 to “Off” position 1. Rubber covers are available in a choice of 3 colours, see typically Stock no 8077146
IP65 rated with fitted rubber cover
3 position operation Off-On-Off
StandardsIEC60947-5-1, EN60947-5-1, IEC60947-5-8, EN60947-5-8, JIS C8201-5-1, UL508, CSA C22.2 No 14
Enabling Switch
