KNITTER-SWITCH Toggle Switch Cap Toggle Switch Capx14pcs

Single Pole, Type MTA / STA
Miniature panel mount toggle switches
Copper alloy, silver plated solder tags
M6 x 0.75 bushing with locking plate, key 9 mm
Insulation resistance: > 1000 MΩ at 500 Vdc
Dielectric strength: 1500 V, 50 Hz for 1 minute
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case
NoteFor biased switches ‘(on)’ refers to momentary ‘on’ positionToggle Switch Boot

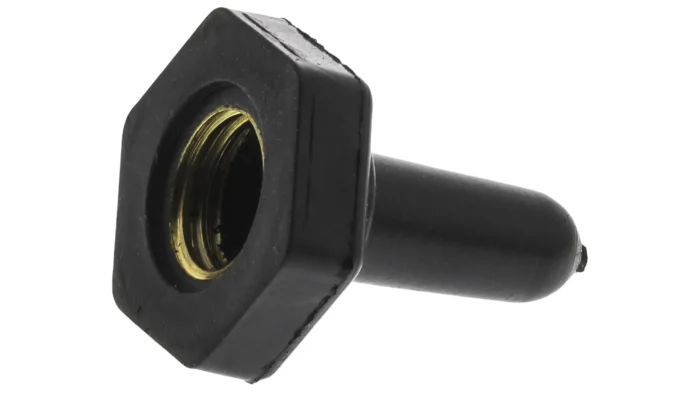

From Knitter Switch, the ET102 is a waterproof toggle switch boot complete with mounting nut. With a height of 14.2 mm, this toggle switch boot is suitable for use with the MTA series.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
