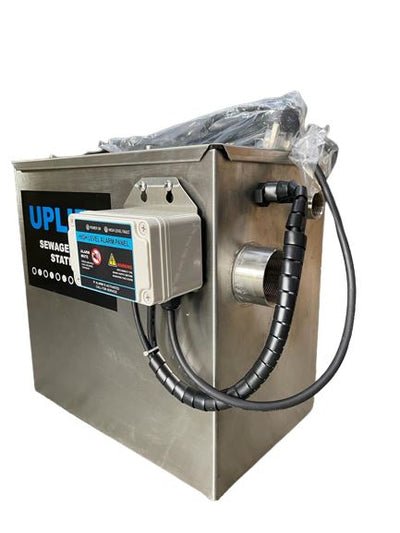

Mepcato 220V 70L Undersink Lifting Sewage Pump Kitchen Station | Model : WP-UPLIFT70
Original price was: $874.00.$801.15Current price is: $801.15.
Mepcato 220V 70L Undersink Lifting Sewage Pump Kitchen Station | Model : WP-UPLIFT70
The undersink pump series are an automatic system designed to handle sink and basin waste where it is not possible to achieve gravity fall to sewer. It incorporates a small electric submersible pump.
The tank receives influent liquid from the basin or sink. As the level in the tank rises, the float switch rises & activates the pump. The pump then discharges the liquid causing the level to fall thus turning the pump off.
Features :
Stainless Steel Construction
Durability is the key with high temperature and corrosion resistant options available for maximum service life
Heavy Duty Pump
Powerful Performance easily handing small solids, plus providing the lift for high heads and long discharge pipe runs that do not run on grade
Smart Design
A compact design that comes fully assembled, with all connections on one face giving best use of space and easy installations
Pre-wired and tested
Single trade installation with a 1.5 meter power cable and plug, for connection to standard socket outlet
Odour Filter
Activated carbon can reduce the smelly and keep the air clean
High Level alarm
provides an audible and visual high level warning including a voltage free (BMS) alarm output, available on the UPLIFT System
Specifications :
Model : RSA-2.4SA
Tank Capacity : 70L
Max. Head : 11m
Max. Capacity : 250 L/min
Max. Solid : 10 mm
Carbon Filter : Standard
Audible height level alarm : Standard
Voltage : 220V
Frequency : 50 Hz
Power : 0.4 kW
Amps : 2.6
Connections
Inlet : 50 mm
Discharge : 25 mm
Dimensions : 531 x 443 x 360 mm
Performance Curve :
