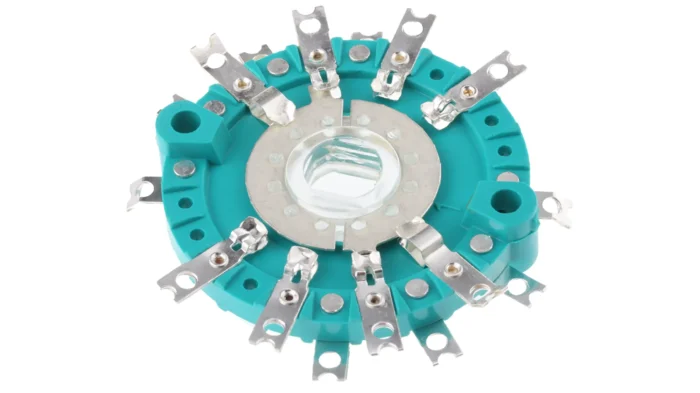

NSF Rotary Switch Wafer 3-Positionx2pcs

The NSF Rotary Switch Wafer provides a high-reliability solution for complex signal routing and circuit selection in industrial control systems. This professional-grade 32mm component features a robust 4P3T contact configuration. It acts as an essential asset for audio equipment, test instrumentation, and high-density electrical panels. Technicians choose this reliable wafer for its long mechanical life and precision indexing. The silver-plated brass contacts ensure maximum conductivity and signal integrity. You can rely on the NSF Rotary Switch Wafer for consistent, shop-quality results. It handles demanding electronic switching requirements with total precision.

Non-Shorting Silver Contacts and High-Cycle Mechanical Life

The unit uses a non-shorting (Break Before Make) contact type to maintain circuit isolation during transitions. This feature provides a significant safety boost for sensitive electronic components by preventing momentary shorts. Furthermore, the NSF Rotary Switch Wafer is rated for a mechanical life of 100,000 operations. This design ensures that every switch position remains crisp and reliable for the operator over years of use. The glass-fibre loaded diallyl phthalate stators offer superior heat resistance during soldering. Using this specialized hardware allows for a professional production cycle. The 30° indexing facilitates accurate tactile feedback during selection.

Industrial Reliability and Modular Panel Mount Build

This unit provides maximum resilience against mechanical stress in transport and manufacturing zones. A reinforced polycarbonate rotor prevents the internal mechanism from slipping under heavy manual torque. The NSF Rotary Switch Wafer features a standard panel mount design with solder terminals for secure wiring. This design reduces the risk of connection failure during frequent operation on the job site. Improved component longevity and worker safety benefit automation and telecommunications maintenance teams. The wafer remains effective for both AC and DC voltage ratings up to 300V. In summary, this switch component combines a potent 100,000-cycle life with a versatile, safety-oriented industrial design.

Key Features and Electronic Integration

• 4P3T Configuration: This feature provides the NSF Rotary Switch Wafer with 4 poles and 3 positions for complex wiring.
• 100,000 Operation Life: This safety feature ensures long-term operational reliability in critical control interfaces.
• Silver-Plated Brass Contacts: This material provides the unit with low contact resistance and excellent signal clarity.
• BBM (Break Before Make): The system ensures circuits are disconnected before the next one is engaged for safer switching.
• Panel Mount Compatibility: The design allows the operator to mount the unit securely using standard M10 x 0.75 bushes.

Technical Specifications

Included in the Package:

• 1 x Professional Rotary Switch Wafer Section
