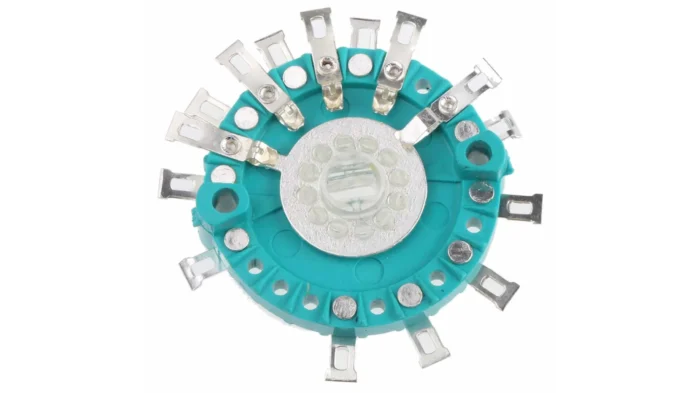

NSF Rotary Switch Wafer 4-Position
Original price was: $118.00.$107.00Current price is: $107.00.
Description
Attribute | Value |
|---|---|
| Diameter | 25.4mm |
| Number of Switch Positions | 4 |
| Voltage Rating | 300V ac/dc |
| Number of Contacts | 3 |
| Contact Configuration | 3P4T |
| Contact Current Rating | 150 mA @ 250 V ac |
| Contact Material | Silver Plated Brass |
| Contact Type | Non-Shorting |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
Miniature Shaft Assembly & Wafers
Miniature Shaft Assembly
Double-spring detent mechanisms in miniature size
Life expectancy >100000 detent operations
30° indexing and adjustable end stops
Takes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used)
6mm diameter shaft and M10 x 0.75 mounting bushes
Overall length 94mm, front shaft length 12mm
Optional accessories are available for to suit individual requirements
Wafers
Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts
Available in break before make (bbm), and make before break (mbb) versions
25mm diameter
