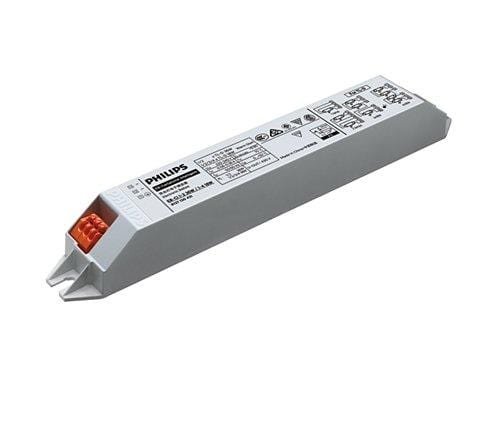

Philips EB-Ci Electronic Ballast 36W/18W TLD 220-240V
$19.00
Description
Philips EB-Ci Electronic Ballast 36W/18W TLD 220-240V
🕓 Lead time: 0–1 days.
Country: Singapore
Incoterm: Ex Works
Description
| Lamp Type | TL-D |
| Number of Lamps | 1-4 piece/unit |
| Suitable For Outdoor Use | No |
| Number of Products on MCB (16A Type B) (Max) | 28 |
| Automatic Restart | Yes |
Operating and Electrical
| Input Voltage | 220-240 V |
| Input Frequency | 50 or 60 Hz |
| Operating Frequency (Nom) | 42-60 kHz |
| Ignition Method | Warm Start |
| Crestfactor (Max) | 1.7 |
| Ignition Time (Nom) | 1.0 s |
| Mains Voltage Performance (AC) | -10%-+10% |
| Mains Voltage Safety (AC) | 198…264V |
| Earth Leakage Current (Max) | 0.5 mA |
| Inrush Current Width | 0.35 ms |
| Ballast Factor (Nom) | 1 |
| Power Factor (Max) | 0.98 |
| Power Factor (Min) | 0.90 |
| Input Power (Max) | 70.2 W |
| Input Power (Min) | 21.3 W |
| Power Losses (Max) | 6.2 W |
| Power Losses (Nom) | 3.3 W |
| Inrush Current Peak (Max) | 19 A |
| Rated Lamp Power | 18-36 W |
Wiring
| Connector Type Input Terminals | Insert |
| Cable Capacity Output Wires Mutual (Max) | 150 pF |
| Connector Type Output Terminals | Insert |
| Cable Length Hot Wiring | 0.75 m |
| Wire Striplength | 7.5-8.5 mm |
| Input Terminal Cross Section | 0.50-1.50 mm² |
| Output Terminal Cross Section | 0.50-1.50 mm² |
| Cable Capacity Output Wires to Earth (Max) | 150 pF |
| Connector Type | Insert |
System characteristics
| Rated Lamp Power on TL-D | 18-36 W |
| System Power on TL-D | 21.3-68.2 W |
| Lamp Power on TL-D | 18.0-31.0 W |
| Power Loss on TL-D | 3.3-6.2 W |
Temperature
| T-Ambient (Max) | 50 °C |
| T-Case Lifetime (Max) | 75 °C |
| T-Case Maximum (Max) | 75 °C |
| T-Ignition (Max) | 50 °C |
| T-Ignition (Min) | -10 °C |
Mechanical and Housing
| Housing Material | Plastic |
| Housing | L210x30x26mm |
Emergency Operation
| Battery Voltage Lamp Ignition | 165-253 V |
Approval and Application
| Energy Efficiency Index | A2 |
| IP Classification | IP 20 [ Ingress Protection 20] |
| EMI 9 kHz … 30 MHz | EN55015 |
| EMI 30 MHz … 1000 MHz | EN 55015 |
| Safety Standard | IEC 61347-2-3,IEC 61347-1 |
| Quality Standard | ISO 9001 |
| Environmental Standard | ISO 14001 |
| EMC Immunity Standard | EN 55015 |
| Vibration Standard | IEC60068-2-6 F c |
| Bumps Standard | Not specified |
| Approval Marks | CB Certificate CCC certificate TISI marking PSB certification RCM compliance CS Compliance IRAM Compliance SNI Certificate |
| Temperature Marking | Yes |
| Hum And Noise Level | < 30 dB(A) |
