Omron ER Rope Pull Switch, 40m, NO/2NC, Straight
Original price was: $365.00.$332.00Current price is: $332.00.
Attribute | Value |
|---|---|
| Normal State Configuration | NO/2NC |
| Cable Length | 40m |
| Mounting Orientation | Straight |
| IP Rating | IP67 |
| Series | ER |
| Length | 205mm |
| Width | 90mm |
| Depth | 74mm |
| Housing Material | Die Cast Aluminium |
| Dimensions | 205 x 90 x 74mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -25°C |
| Maximum DC Voltage | 24V |
| Maximum AC Voltage | 240V |
| Conduit Entry | M20 |
| Maximum Current | 3A |

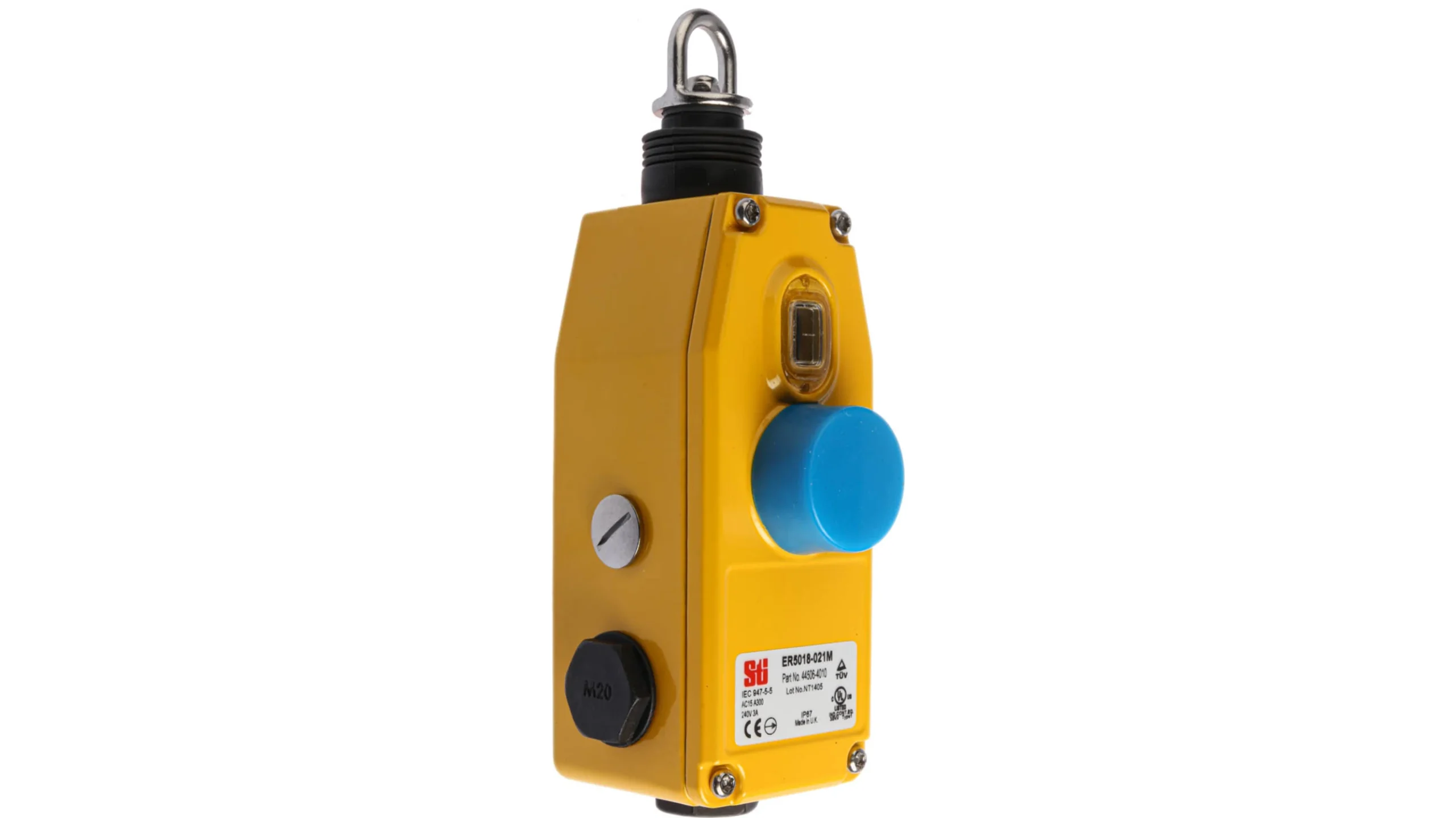

Omron Rope Pull Emergency Stop Switch
The Omron ER series of rope pull emergency stop switch has 1NO/2NC contact configuration. It is designed to be tough and durable for even the most demanding applications. It has long coVerage spans, rope pull switches, which eliminates the need for numerous E-stop buttons reducing installation time and costs. It also has a rope pull switch which is available as standard, with an E-stop button or with an indicator beacon. This product has a blue reset button for easy return the unit back to its machine running position after actuation. The long-life switch is designed for a minimum of one million actuations. This switch has a rope span of 40m and an electrical current rating of 3A at a voltage rating of 240VAC.
Features and Benefits
Size of cable entry is M20
Tension indicator makes the system easy to set up and to maintain the proper rope tension
Die-cast aluminium housing with a stainless steel eye nut
Snap-acting switch contacts protect against nuisance tripping due to vibration
Blue reset button is provided to easily return the unit back to its machine running position after actuation
Certifications
IP67 rated
IEC947-5-1
IEC947-5-5
EN418
UL508
BS5304
CE certified
UL approved
