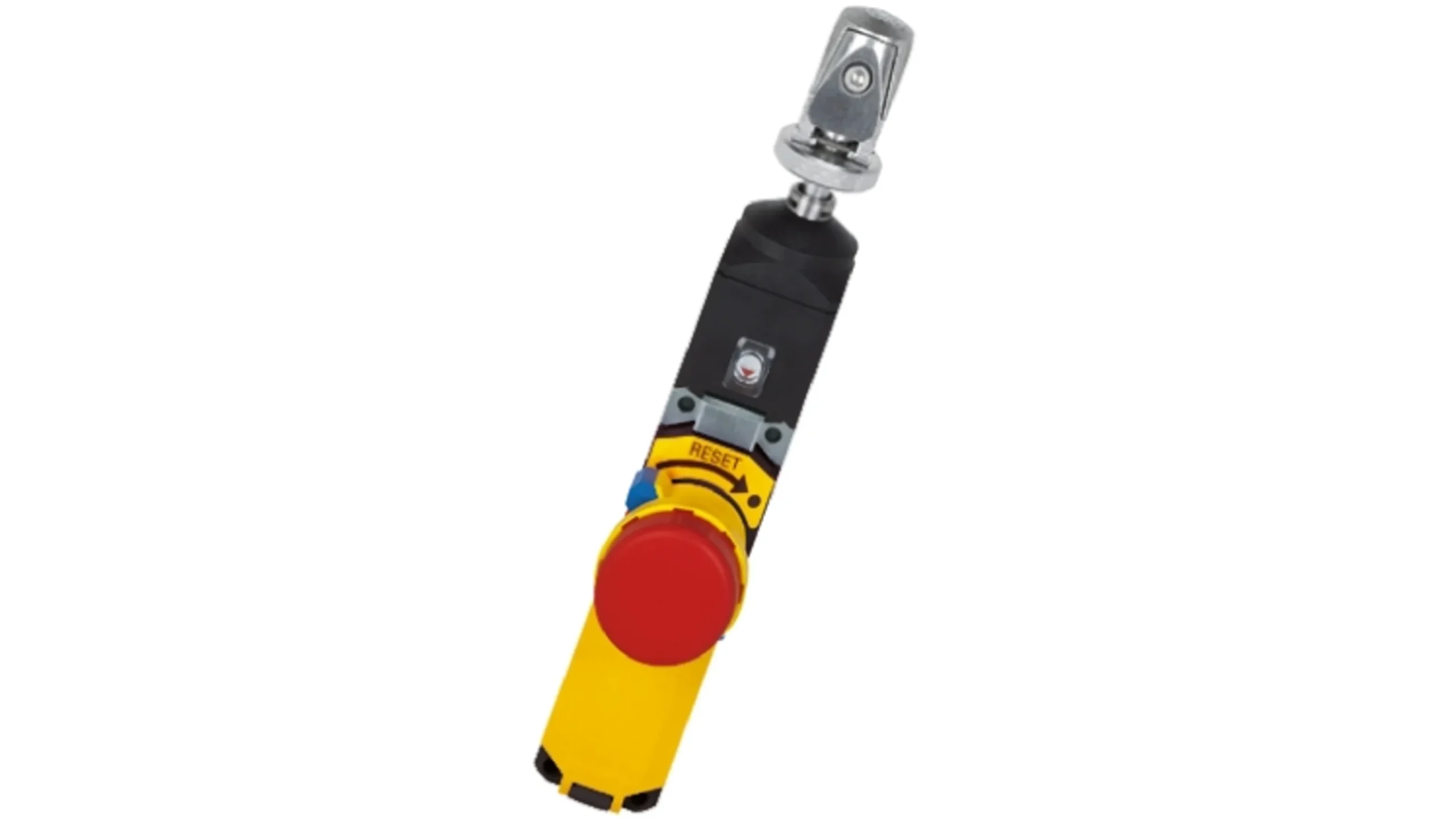

Pilz PSENrope Rope Pull Switch, 75m, 2NO/2NC, Side Mount
Original price was: $401.00.$365.00Current price is: $365.00.
Attribute | Value |
|---|---|
| Normal State Configuration | 2NO/2NC |
| Cable Length | 75m |
| Mounting Orientation | Side Mount |
| IP Rating | IP67 |
| Series | PSENrope |
| Length | 289.1mm |
| Width | 42.5mm |
| Depth | 88.5mm |
| Housing Material | Die Cast Zinc |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Maximum AC Voltage | 240V |
| Dimensions | 42.5 x 289.1 x 88.5mm |
| Conduit Entry | M20 x 1.5 |
| Maximum Current | 3A |
PSEN Safety Rope Pull Switch
The PSENrope from Pilz is a manually operated rope pull switch used to safely shut down functional processes that extend over a wide area, such as conveyors. It provides maximum safety, as the emergency stop function can be triggered at any point along the rope. Available with either a polyamide or aluminium enclosure which has three M20x1.5 cable entries. When the cover is closed correctly and an equivalent specification cable gland used, IP67 protection can be achieved.
Flexible to use as the operating range is limited only by the length of the rope
Extremely resilient and suitable for both indoor and outdoor use
High level of safety due to the wiring space being physically separate from the mechanics
Dual function mushroom type pushbutton with E-STOP and pull-to-release
