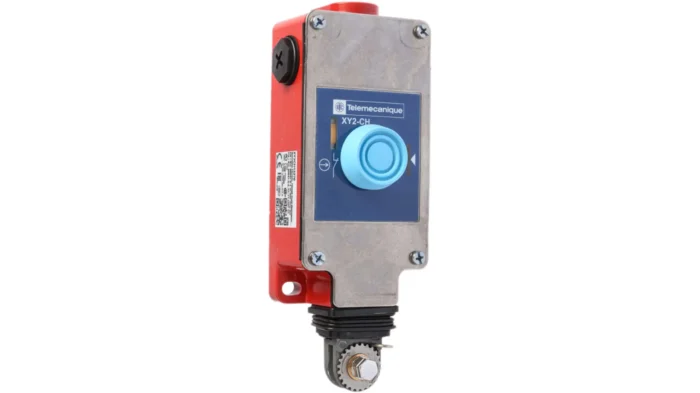

Telemecanique Sensors XY2-CH Rope Pull Switch, 2NC, Straight
Original price was: $356.00.$324.00Current price is: $324.00.
Attribute | Value |
|---|---|
| Normal State Configuration | 2NC |
| Mounting Orientation | Straight |
| IP Rating | IP65 |
| Series | XY2-CH |
| Range | Preventa |
| Length | 68mm |
| Width | 201mm |
| Depth | 95mm |
| Housing Material | Zinc Alloy |
| Maximum DC Voltage | 250V |
| Maximum AC Voltage | 240V |
| Maximum Current | 10A |
| Dimensions | 68 x 201 x 95mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Standards Met | CCC, CSA C22.2 No. 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Conduit Entry | PG13.5 |
Telemecanique Sensors Rope Pull Switch, PG13.5 Conduit Entry – XY2-CH Series – XY2CH13270
Need an emergency stop switch that’s suitable for large workspaces? This straight-mounted rope pull switch from Telemecanique Sensors has the functionality you need. Instead of a push button, the 2NC unit has a trigger cable that activates the emergency stop when pulled. As its cable has a maximum length of 30m, you can use it over a wide area, including with large industrial equipment. It’s highly reliable, with a rating of at least 800,000 cycles, while its stainless-steel cover is resistant to corrosion for a longer lifespan.
Features & Benefits
• Zamak body provides strength and durability
• IP65 rating, so it’s dust-tight and protected against low-pressure water jets
• High maximum voltage ratings of 240V AC and 250V DC make it safe to use with powerful electrical systems
• Operating temperature range of -25°C to +70°C for installation in demanding environments
Applications
• Conveyor systems
• Packaging applications
• Transfer machines
• Presses
• Woodworking equipment
What are the dimensions of this unit?
This unit’s dimensions are 68 (L) x 201 (W) x 95mm (H). It supports surface mounting on a wall or machine.
