Schneider Electric Contact Block for Harmony 9 Seriesx2pcs
Original price was: $121.00.$110.00Current price is: $110.00.
Durable Schneider Electric Harmony 9 Series contact block for industrial control. Easy installation, high performance, and reliable electrical connections.
Attribute | Value |
|---|---|
| Accessory Type | Contact Block |
| For Use With | Harmony 9 Series |
| Series | Harmony 9001K |
| Better World Product | Yes |
| Better World Verification | Green Premium |

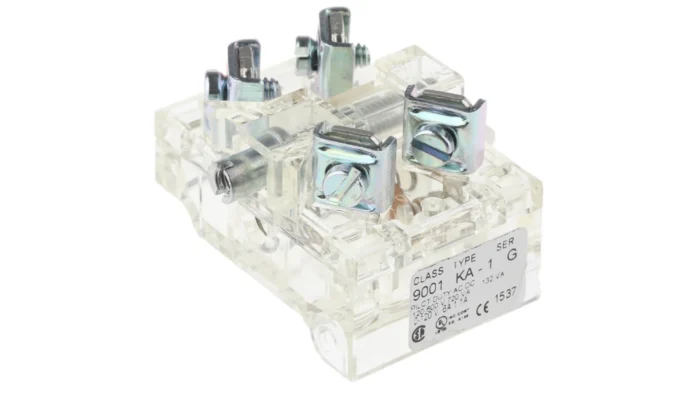

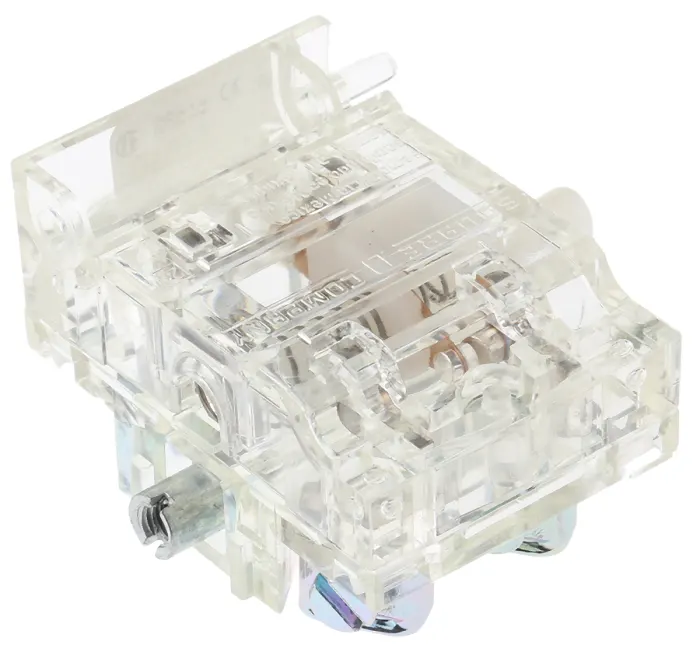

Schneider Electric | Harmony 9001K Series (KA) | Contact Block
Presenting the Harmony 9001K range of Contact Blocks by Schneider Electric. Quality, durable and efficiency all in one, these range of contact blocks go through rigorous testing to ensure the final quality product reaches a high-quality standard.
Schneider Electric Contact Block Features and benefits
• Lightweight, easy to fit and configure screw clamp terminal connectors. Easily removable and adjustable.
• 1 NO contact type, with protected terminals.
• Schneider Green Premium product as standard across the 9001K Contact block range. Environmentally friendlier than alternatives, easy to dispose of safely.
• 18 month warranty period with Schneider Electric.
Protection ratings & Safety features –
• IP 20 conforming to IEC 60529 (protection against certain sized tools, moisture etc.)
• EN/IEC 60947-1, 60947-5-1 & 60947-5-4.
• UL 508 & CSA C22.2 No 14.
• Vibration resistance 7 gm (f = 2…500 Hz) conforming to IEC 60068-2-6
• Shock resistance to 30/50gn dependent on the duration (see datasheet for spec).
• Short circuit protection via 10 A cartridge fuse which conforms to EN/IEC 60947-5-1.
Applications –
• Square D momentary non-illuminated push buttons.
• Rotary selector switches.
• Indicators-transformer type.
Supplied with3513789
Square D 30.5mm
Protection Rating: IP66. Oil Tight. Max panel thickness: 6mm
