Theben LUXA 103 S360-100-12 AP WH Surface-Mounting Passive Infrared Presence Detector,

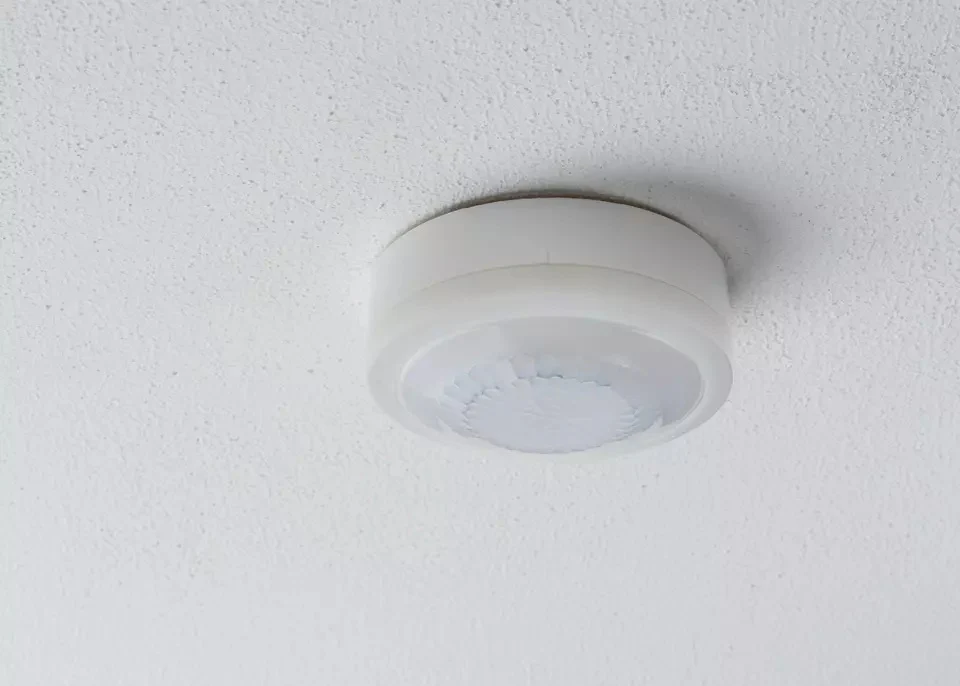

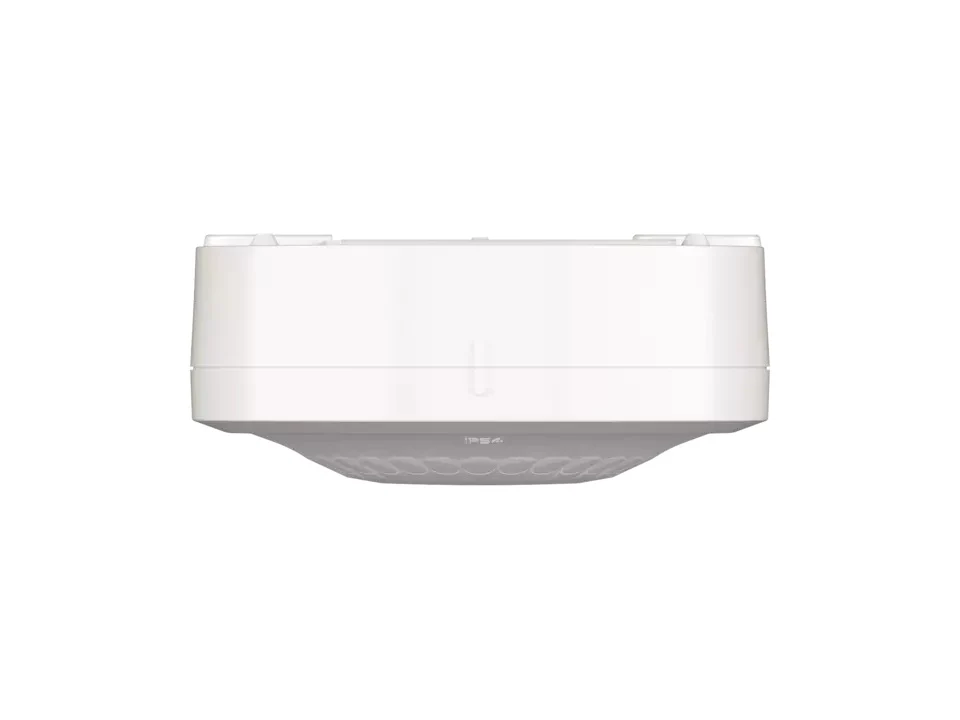

Surface Mounting Presence Detector

Country: Singapore
Incoterm: DAP

📎 Datasheet

**Lead Time 1 Week**

Surface Mounting Presence Detector Functional Description:

• Passive infrared presence detector, surface-mounting
• 1 channel light (relay 230 V)
• Circular detection area 360°, Ø 12 m (113 m²) at 3 m mounting height
• Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
• Networking with wall detector theMura Slave possible

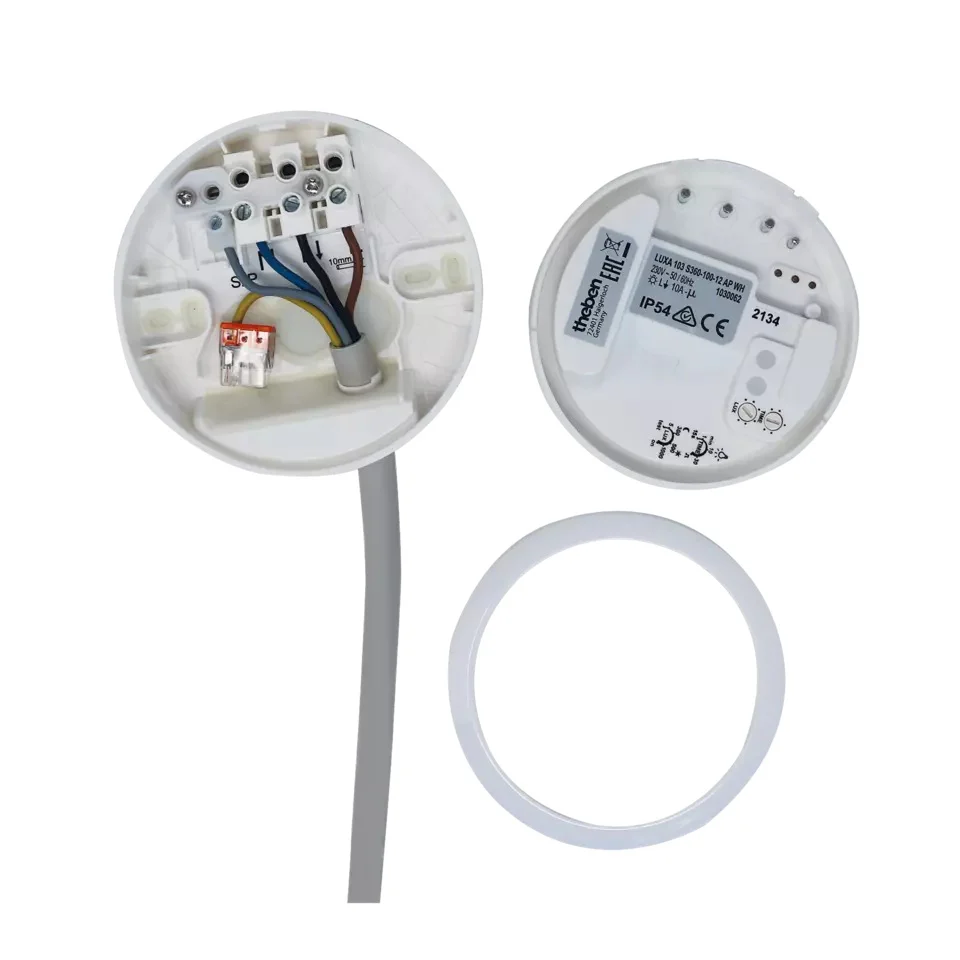

• Connection option for push-button for manual switching
• Operation as fully or semi-automatic possible
• One directional brightness measurement (mixed light measurement)
• Teach-in function, pulse function, test function, staircase lighting function
• Ready for operation immediately due to factory presetting
